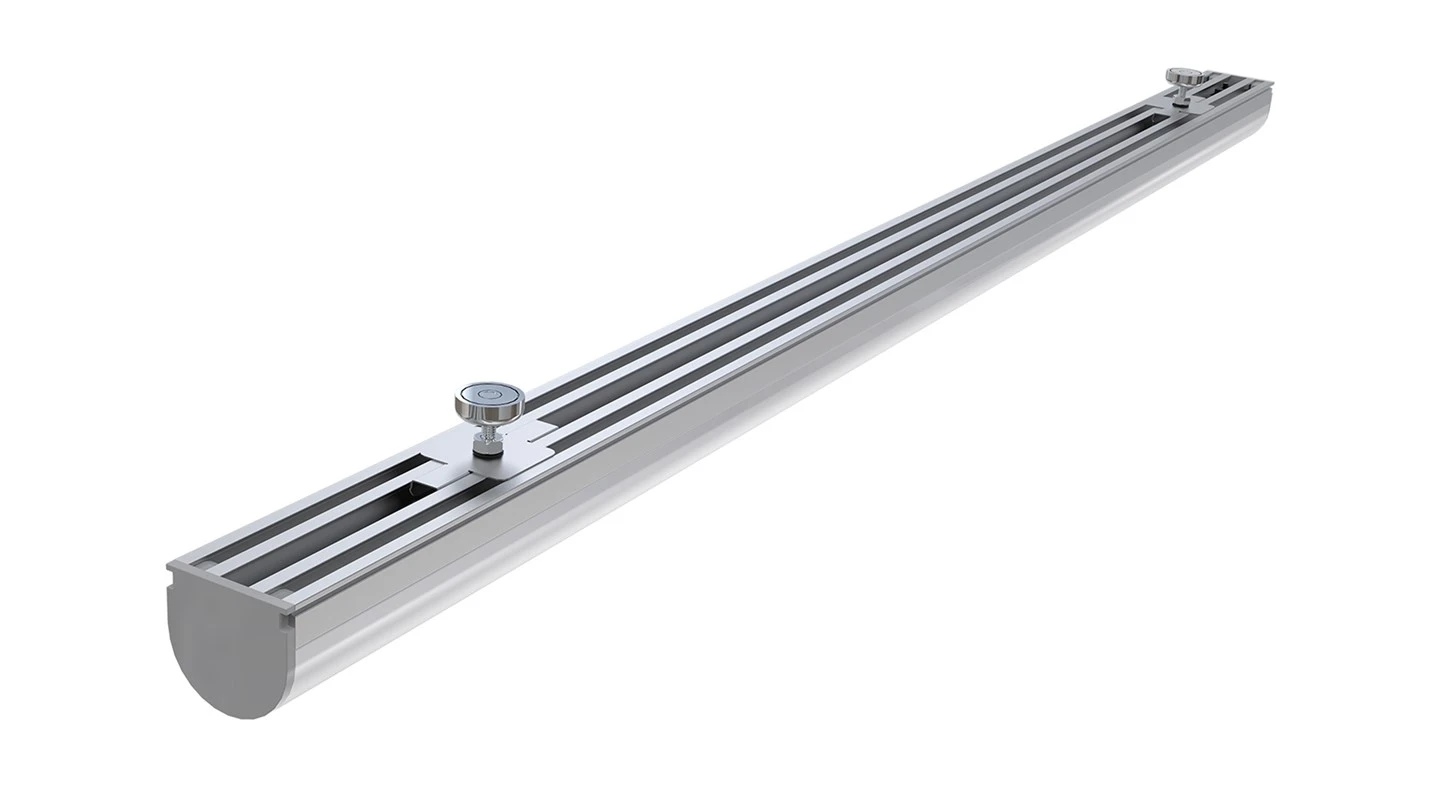

Magnetic Retrofit--2

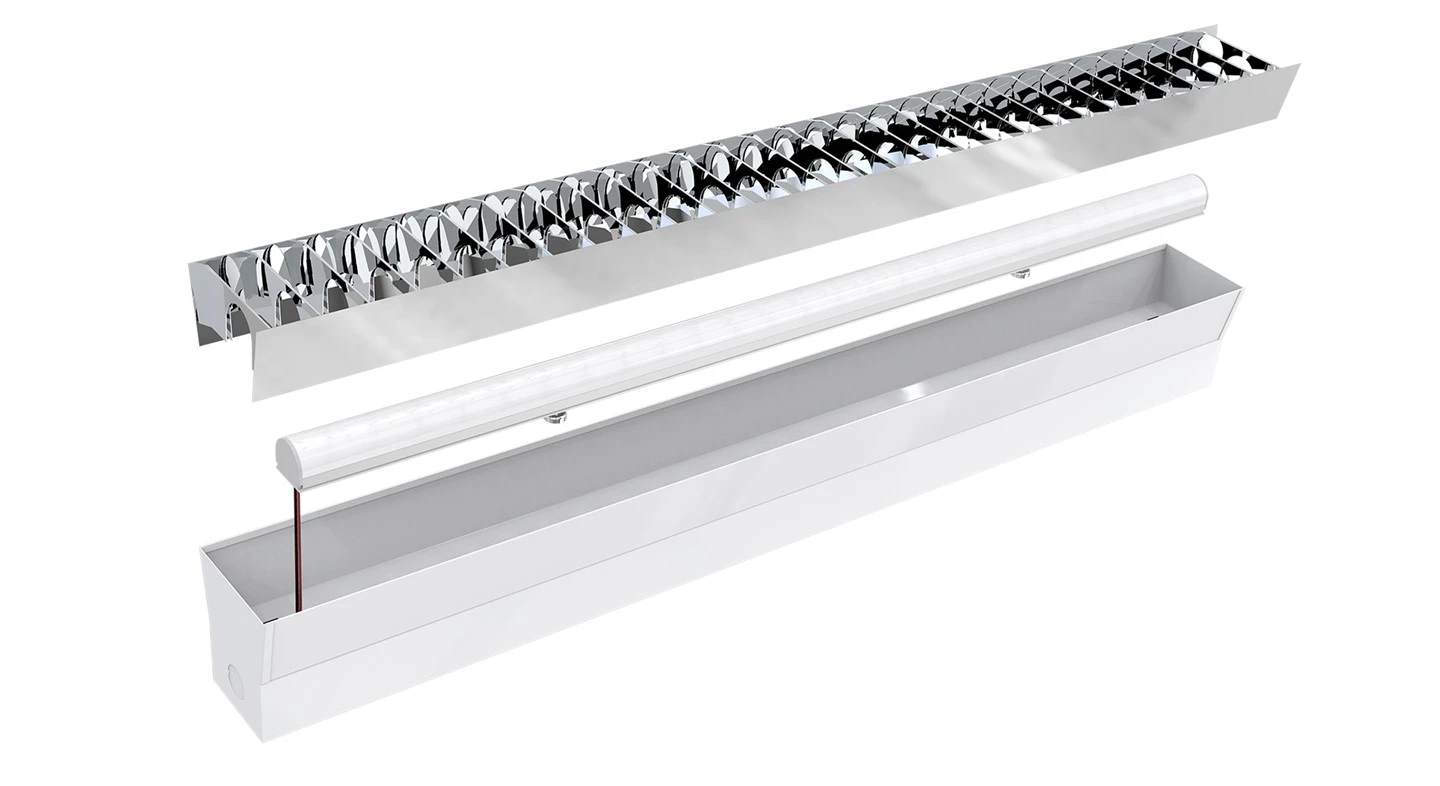

Magnetic Retrofit--3

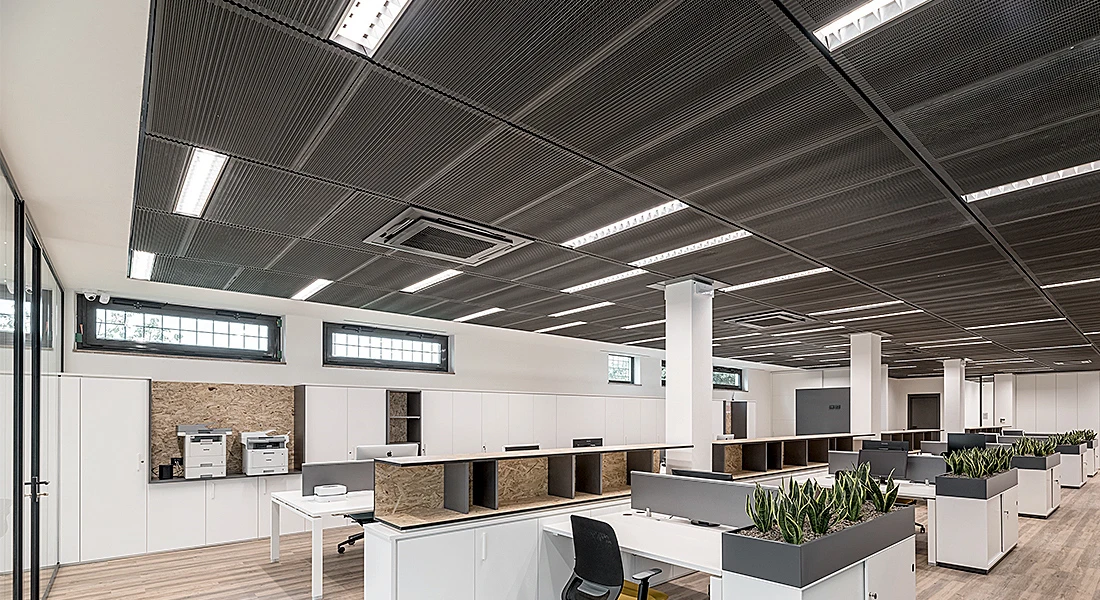

Magnetic Retrofit--4

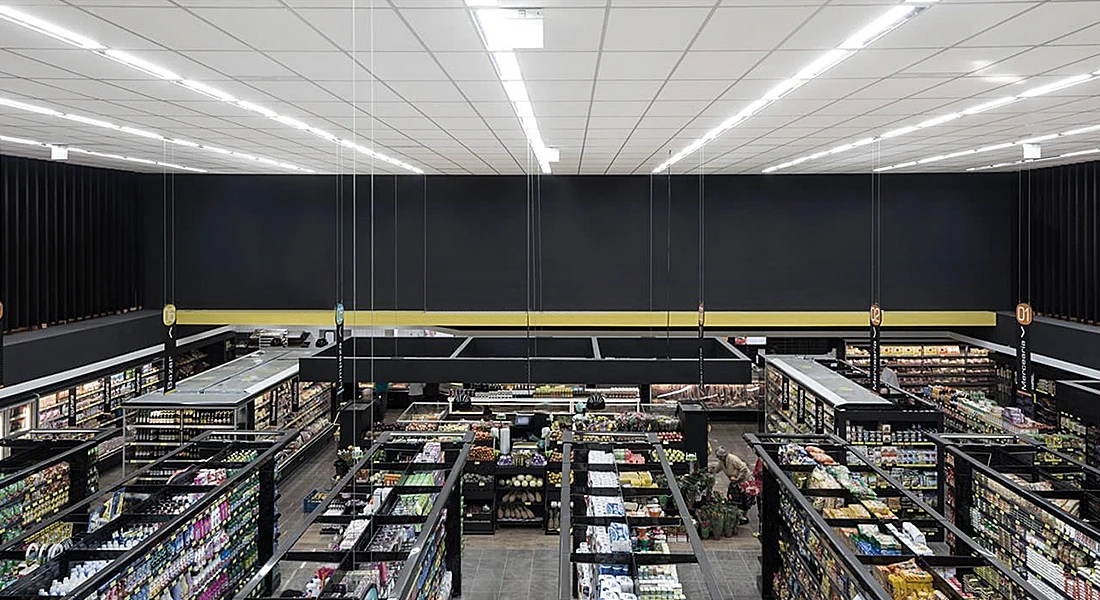

Magnetic Retrofit--5

Inkcazo:

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, iSDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

Uphawu:

>Uyilo lwelungelo elilodwa lomenzi wokutshintsha indawo yetyhubhu ye-T5/T8 fluorescent kwi-troffer

>Amandla kunye noMbala (3CCT) Indawo-iyalungiseka

> Up to 130lm/w@4000lm (Ra>90,R9>50,SDCM<3)

>Isixhobo seMagnet{0}ufakelo lwasimahla, kulula ukulugcina, gcina ixabiso labasebenzi

>I-80% yokonga amandla ngaphezulu xa kuthelekiswa nezibane zefluorescent

Send Inquiry

Download

Description

Technical Parameters

INTSHAYELELO:

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, iSDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

Ikhowudi yomyalelo	Ilinganiswe Amandla	LM/W	Lumen	I-SDCM/Ra	IP Class	Imveliso Dimension	GW/CTN	QTY/CTN
TU100-02N-PT1-24F10-01	14W/24W	Uhlobo.120	uhlobo.1680/2880	I-SDCM<3/Ra80,90	IP20	L540xW26xH24	9.91kg	25pcs
TU100-04N-AT1-30F10-01	14W/30W	Uhlobo.130	uhlobo.1820/3900	I-SDCM<3/Ra80,90	IP20	L1160xW26xH24	14.93kg	25pcs
TU100-05N-AT1-30F10-01	14W/30W	Uhlobo.130	uhlobo.1820/3900	I-SDCM<3/Ra80,90	IP20	L1460xW26xH24	17.4kg	25pcs

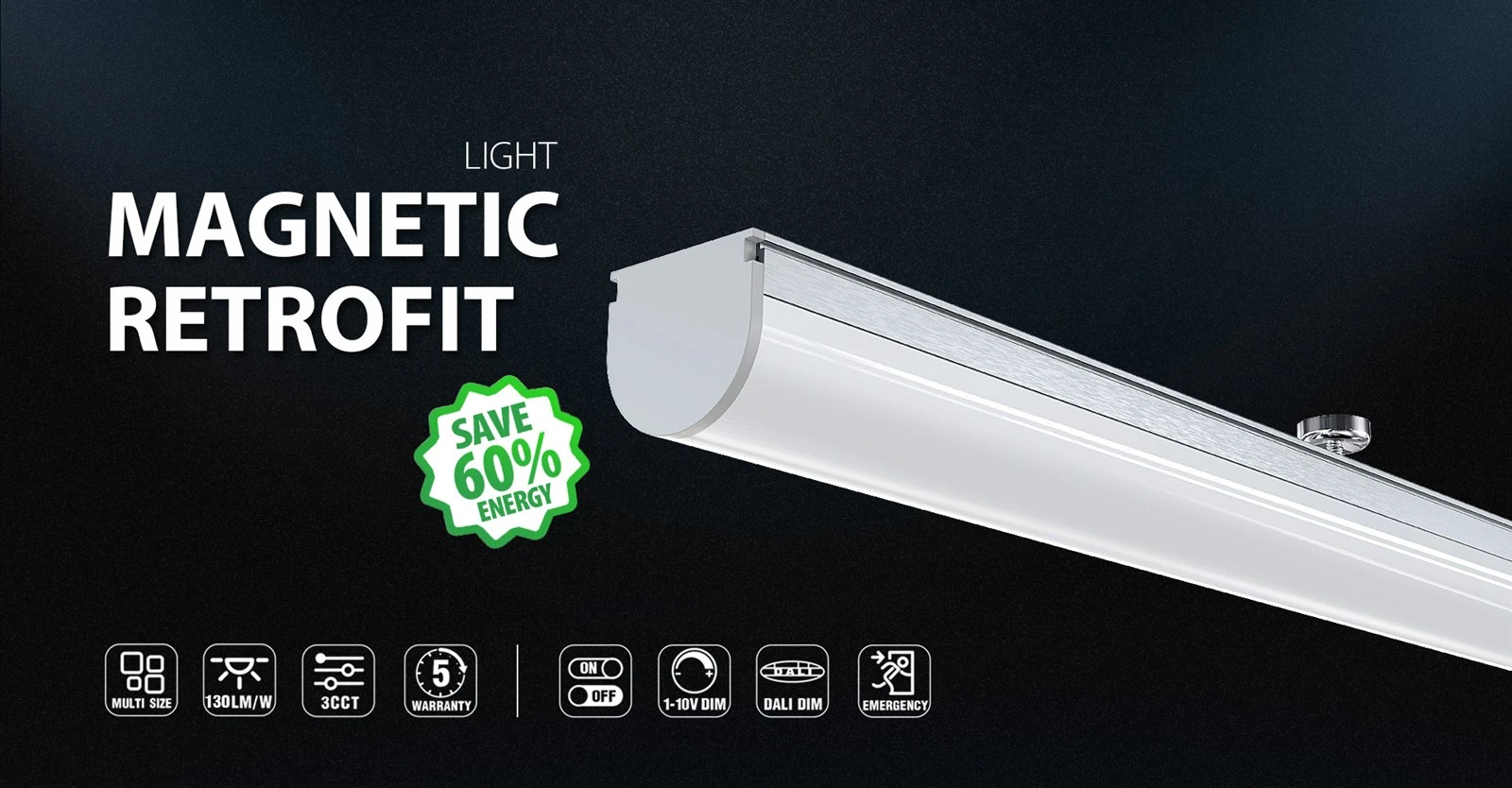

Magnetic Retrofit -1

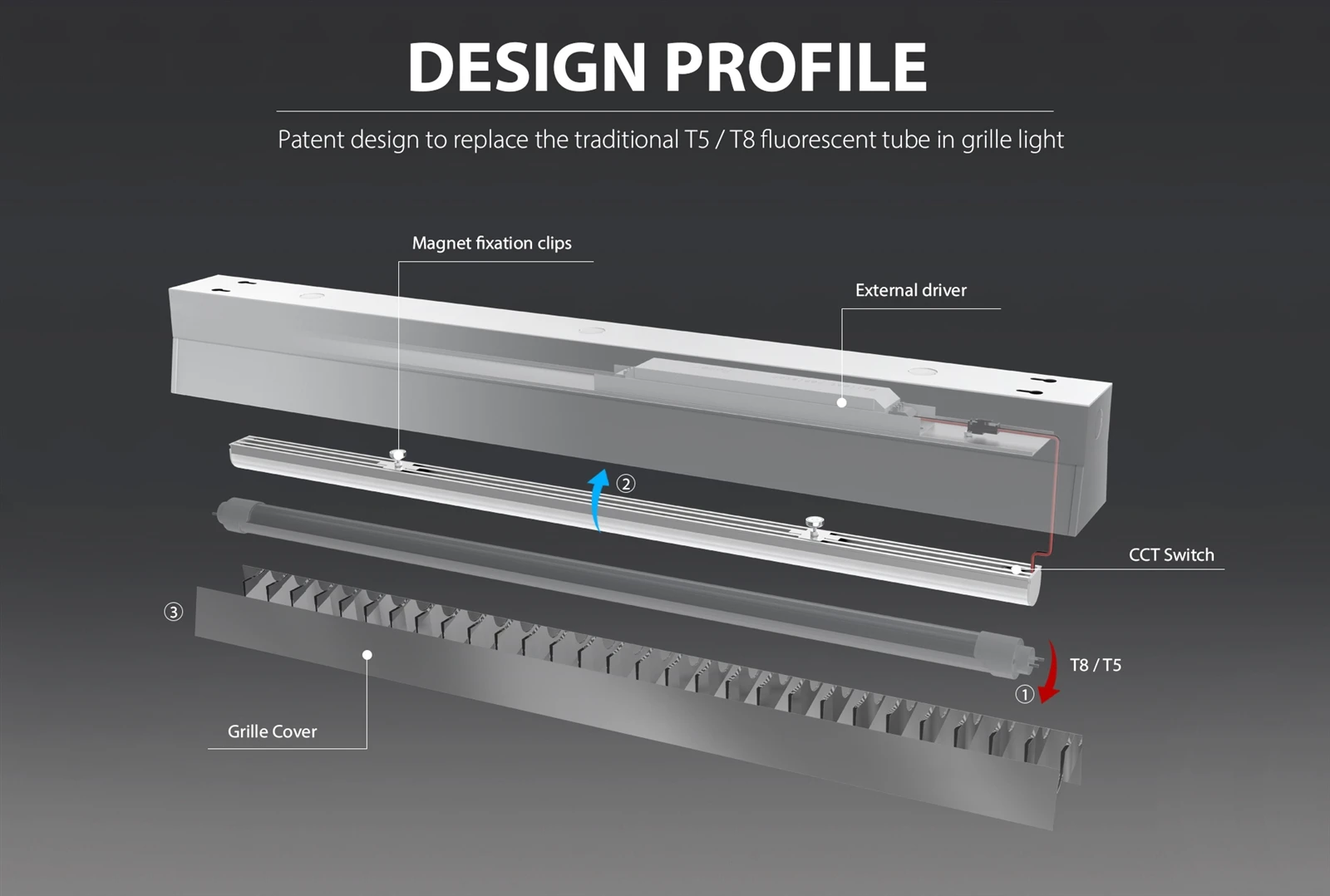

Magnetic Retrofit -2

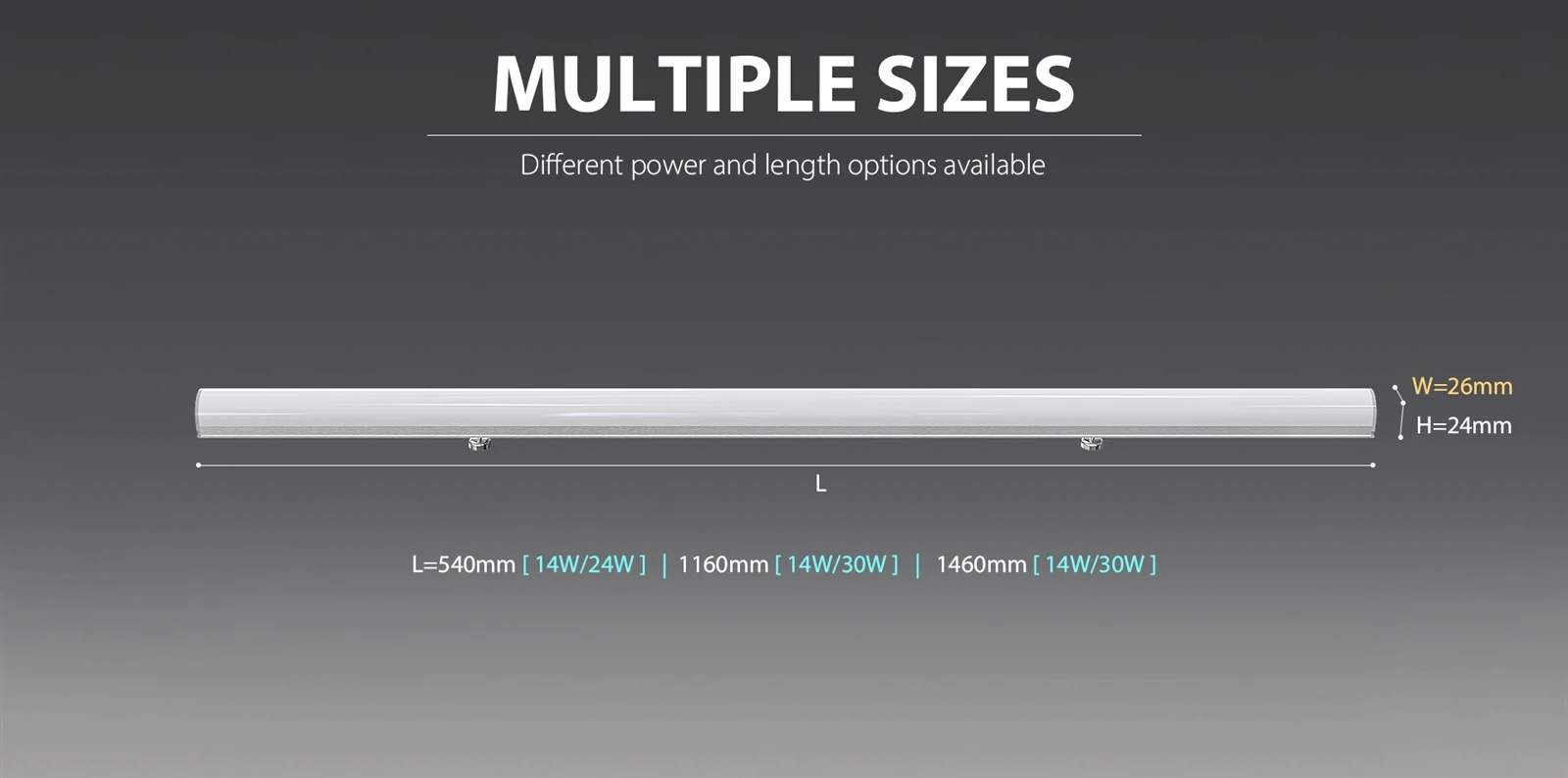

Magnetic Retrofit -3
